Terminal Displays

Action Taken

PLEASE INITIALIZE

Press the Blue [Function] button.

MERCHANT FUNCTION

Tricky part coming up.

Key in 3.

MERCHANT FUNCTION

Tricky part.

Press the Green [Enter] button. Immediately press and hold down the Orange [Verify], [Void] and [Offline] buttons.

ALTERNATE (EASIER) METHOD - Unplug the power. While holding down the Orange [Verify], [Void] and [Offline] buttons, plug the power in.

ASPOS70.M9B DLL-00

WAIT SELF-TEST

After reboot and this display is showing, release the three buttons.

ENTER PASSWORD
FOR TID: 01234567

Key in 028510.

ENTER PASSWORD
FOR TID: 01234567	* * * * * *

Press the Green [Enter] button.

PLEASE INITIALIZE

OR CALL HELP - FE

Press the Blue [Function] button.

MERCHANT FUNCTION

Key in 98.

MERCHANT FUNCTION

Press the Green [Enter] button.

CORRECT? YES OR NO

Press the Green [Enter] button.

PLEASE INITIALIZE

OR CALL HELP - PE

Press the Blue [Function] button.

MERCHANT FUNCTION

Key in 2.

MERCHANT FUNCTION

Press the Green [Enter] button.

TERMINAL ID NUMBER

001234566

Key in the 9-digit TID.

The first 8 digits of the number will be the our TID preceeded by a zero or two followed by a Check Digit -

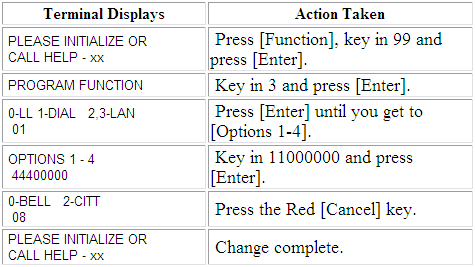

NOTE: If this parameter is not available, click on image.

TERMINAL ID NUMBER

012345674

Press the Green [Enter] button.

INIT. TELEPHONE NO

18776312757

Key in 18663120051. (No prefix at this time.)

INIT. TELEPHONE NO

18663120051

Press the Green [Enter] button.

NMS TELEPHONE NO

18776312757

Key in 18663120051. (No prefix at this time.)

INIT. TELEPHONE NO

18663120051

Press the Green [Enter] button.

DIAL 0-TONE 1-PULSES

Press the Green [Enter] button.

PABX ACCESS CODE

If no prefix required, press the Green [Enter] button.
If prefix required, key in the prefix and press the Green [Enter] button.

COUNTRY CODE

No longer required. If prompted, press the Green [Enter] button.

EXIT, PRESS, 'CANCEL'

Press the Red [Cancel] button.

PLEASE INITIALIZE

OR CALL HELP - PE

Press the Gray [Initialize] button.

PROGRAM LOAD

CORRECT? YES OR NO

Press the Green [Enter] button.

PROGRAM LOAD

MODEM TRAINING

The terminal will dial out, configure the modem and start loading the application(s).

WAITING FOR ANSWER

This portion of the download takes approximately 25-30 minutes.

The display to the left shows that page 4 out of 12 is currently being downloaded.

Upon completion, the terminal will automatically reboot.

PROCESSING NOW

PROGRAM LOAD LOADING MEM	0012

LOADING
TRANSACTION COMPLETE

PLEASE INITIALIZE

Press the Gray [Initialize] button.

INITIALIZE

WAITING FOR ANSWER

This portion of the download takes approximately two minutes.

Upon completion, the terminal will automatically reboot.

INITIALIZE

TRAINING MODEM

INITIALIZE

PROCESSING NOW

INITIALIZE

TRANSACTION COMPLETE

Download Complete.
