Terminal Displays
| Action Taken
|

 |

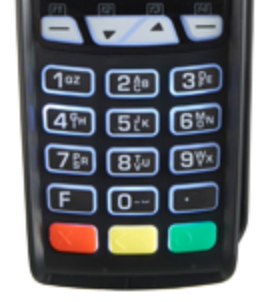

[iCT250]
Press the [F] button. |
SYSTEM MANAGER |
 |
|
 |

 |
Key in P123456 and press the Green [Enter] button.
Other possible passwords are 123456A, 123456P, 123456V, A123456, or
V123456. |
To key in a letter, press the numbered button with the desired letter on it and
then press the [F] button until you get the desired letter.  | |
FUNCTIONS |
 |
0-TELIUM MANAGER |
1-TCU |
2-TADU |
3-CAV-DEV |
|
 |
 |

 |
Scroll down to the TCU option. |
FUNCTIONS |
 |
0-TELIUM MANAGER |
1-TCU |
2-TADU |
3-CAV-DEV |
|
 |
 |

 |
Press the Green [Enter] button. |
TCU |
 |
|
 |

 |
Press the [0] button. |
|
PACKAGE VERSION |
Base: TSY-912301-0164 |
Apps: TSY 5.0.10 0006 |
|
 |
This will show the Package Information. It will time out or you can press the Red button to exit. |

 |
Two more portions of a Receipt will print showing the Download Done and the
installation of the Parameters. See Below
Download completed and the terminal can now process
Checks. |
