V3 Terminals Only


     Built for Payments. Made for You.
Ingenico’s sleek and modern payment devices feature everything needed to process payments and support the expanding needs of POS marketing & loyalty programs.
   •  Support the latest EMV and PCI standards, as well as all leading point-to-point encryption technologies
   •  Facilitate contactless payments via a simple tap of a card, mobile phone or other device
   •  Ensure simple navigation via menu-driven displays that also act as the ideal medium for advertising, electronic coupons and loyalty programs
   •  Provide the choice of a one-piece handover solution that easily passes from clerk to customer for secure card and data entry, or a two-piece
   •  solution that supports dedicated entry devices for the clerk and customer
     Sleek Design
The iCT220 and iCT250 terminals have been designed with clerk-customer interaction in mind.
   •  Lightweight and ergonomically engineered to be comfortably passed and held for simple and secure data entry

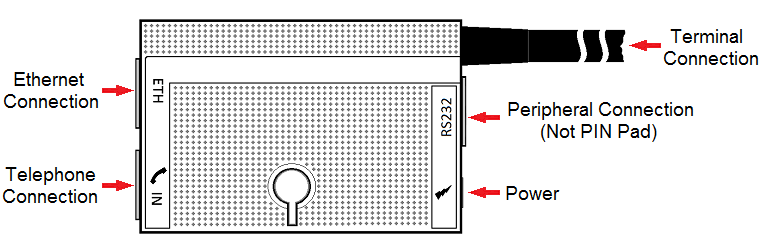

   •  Unique Magic Box cable management feature reduces counter clutter and makes installation a breeze
   •  Bright display, backlit keypads and menu-driven prompts make it easy and intuitive for clerks and customers alike
           >  Add a level of customization by displaying your logo on the iCT220 or iCT250
           >  Use the color display on the iCT250 for POS coupons and advertising
     Secure Transactions
All devices support the latest security standards to protect cardholder data.
   •  EMV chip card transactions significantly reduce card-present counterfeit card use, improve global interoperability, and ensure that merchants are ready for the shift in fraud liability as defined by the card brands
   •  Strong security features protect against physical device attacks
   •  Support for all leading point-to-point encryption technologies secures data at the earliest point in the transaction lifecycle
   •  Code authentication ensures that only authorized software applications and files can be loaded
     Versatile Interface
The solutions can be configured to meet the demands of your business and your customers’ needs.
   •  Ready now for EMV, contactless, mobile wallets, loyalty programs, coupons and advertising
           >  The iCT250 includes an integrated NFC contactless reader
           >  NFC contactless is an option for the iCT220
   •  Ability to connect a customer-facing iPP310 PIN pad that features an intuitive display, mag-stripe reader, EMV card-entry slot, and integrated contactless reader
   •  Dial and high-speed IP communication methods supported
           >  Merchants can easily switch should their connectivity needs change
     Proven and Reliable
The solutions are built and backed by Ingenico, the world’s leading provider of payment solutions. As customer interaction at the point of payment evolves, you can be confident that you have a robust platform that will continue to support industry trends.
   •  Scalable and proven Telium 2 technology platform is installed in more than 20 million terminals worldwide

More information on these terminals can be found at the Ingenico website:
iCT220     iCT250


iCT-220 Data Sheet    iCT-250 Data Sheet

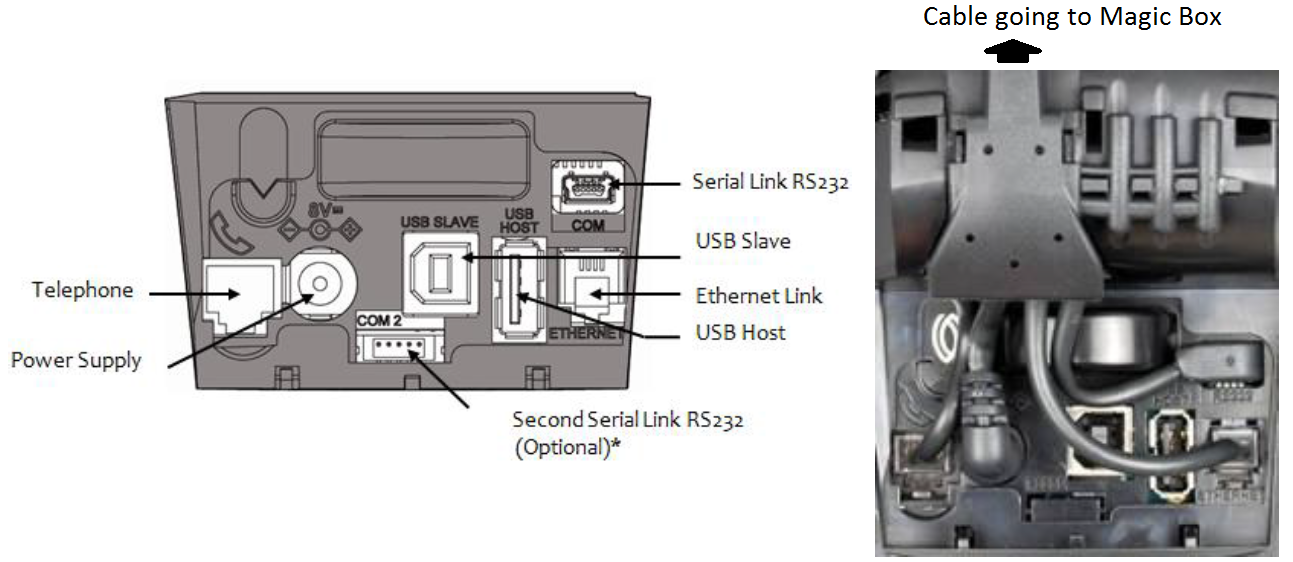

Connecting to readers       Connecting to Imagers
Click on terminal below
to view connections
Magtek
Mini-MICR
  Magtek
Imager (Dial)
Magtek
Imager (IP)
Panini
mI:Deal
RDM
EC-6014f
RDM
EC-7014f

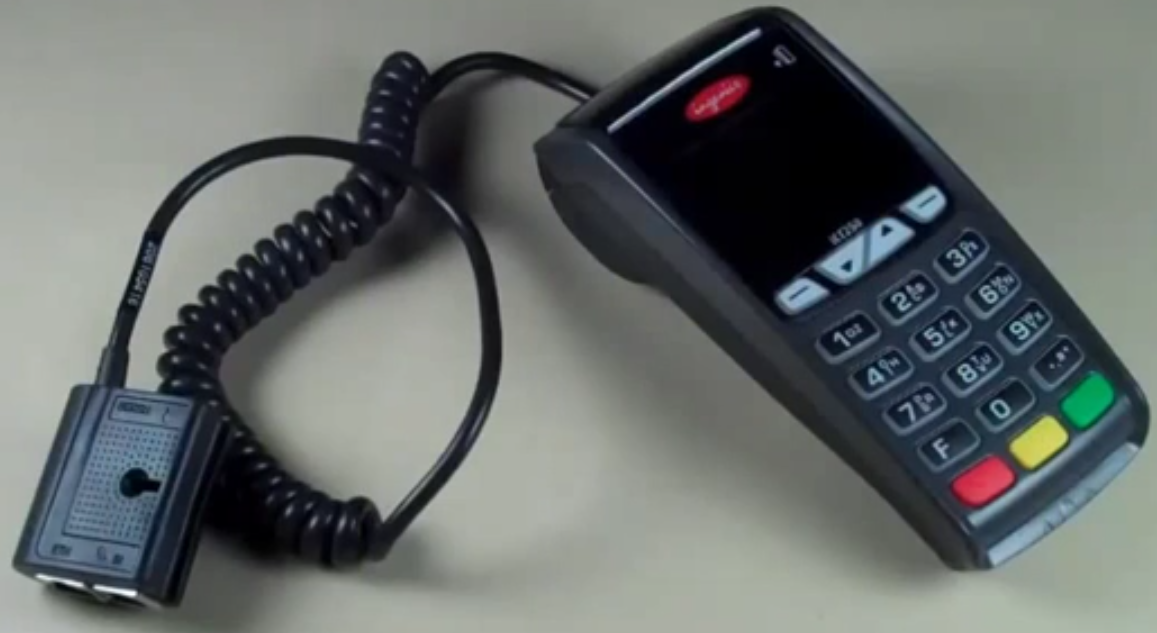

iCT200 Series

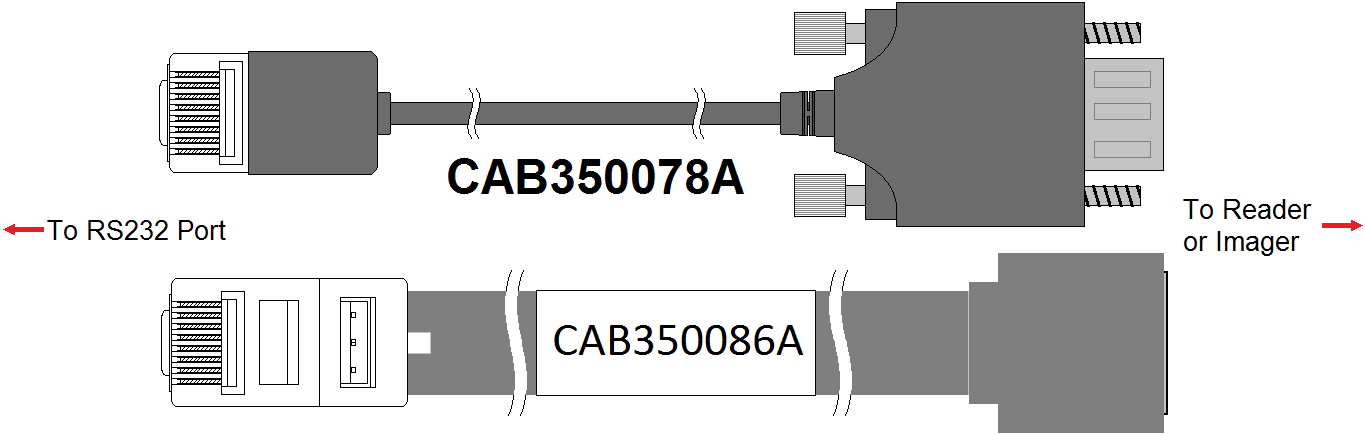

One of the adapters below will also be required.


Updated: 01/18/2018
