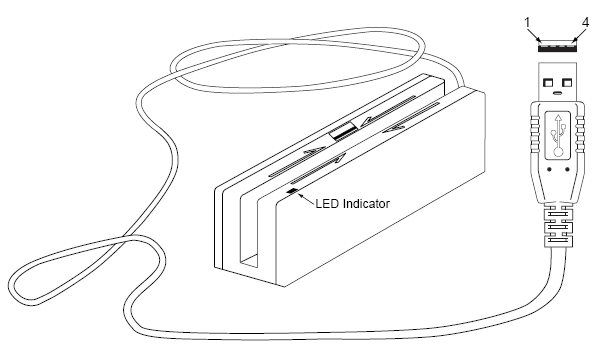

The Mini Swipe Reader is available with a USB interface in either HID or a Keyboard Emulation mode and it can be reconfigured in the field. The Mini Swipe reader captures 3 tracks of data from all ISO and AAMVA encoded magnetic stripe cards. A green/red LED indicator on the reader provides the operator with status of the reader operations. With this Reader type, the magnectic stripe must face toward the front (the side with the LED) and may be swiped in either direction.

FEATURES
  • Includes a single magnetic read head
  • Three track capability
  • Bi-directional read capability
  • Reads cards that meet ISO and AAMVA standards
  • USB Interface: standard HID or Keyboard Emulation
  • Powered by USB (No external power supply required)
  • Includes USB interace (6ft. cable)
  • Dual color LED
  • No third-party device driver required

More information about this terminal can be found at www.magtek.com.

Part Number Description
21040107  White   /   Track 1, 2, 3   /   Single Head   /   Keyboard Emulation Interface
21040108  Black   /   Track 1, 2, 3   /   Single Head   /   Keyboard Emulation Interface
21040101  White   /   Track 1, 2, 3   /   Single Head   /   Human Interface Device (HID) Interface
21040102  Black   /   Track 1, 2, 3   /   Single Head   /   Human Interface Device (HID) Interface

Download/View Magtek Data Sheet
Download/View Magtek Technial Manual
Download/View Magtek Card Reader Family




Updated: 07/21/2017
