A Benchmark of Excellence in Check Scanning Technology. Excella STX offers a viable and affordable alternative to implement image capture at the earliest entry points for check payments.

Features:
  • Single-feed check operation.
  • MICR reading: E13B and CMC7.
  • Scans front and back images of a check in a single pass.
  • Single-side scanning of standard ID cards.
  • Optional front and back printers for franking and endorsing.
  • Optional color scanning available.
  • Optional 3-Track swipe reader with MagnePrint.

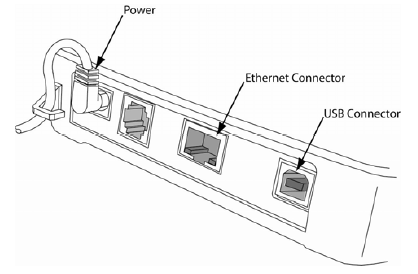

  • Interfaces: USB 2.0 and Ethernet 100baseT.
  • Small footprint.
  • Easy access to path and scan bars for maintenance and cleaning.
  • API and protocol compatible with MagTek’s Excella (auto-feed scanner).
    		•

    More information about this terminal can be found at www.magtek.com.


    Part Number Interface Color Images Front PRN Back PRN 3 Track MSR MagnePrint®
     22350001  USB 2.0 A-B / Ethernet 100Base-T  Yes  Yes  Yes  Yes
     22350002  USB 2.0 A-B / Ethernet 100Base-T  Yes  Yes  Yes  Yes
     22350003  USB 2.0 A-B / Ethernet 100Base-T  No  No  No  No
     22350004  USB 2.0 A-B / Ethernet 100Base-T  No  Yes  Yes  No
     22350005  USB 2.0 A-B / Ethernet 100Base-T  No  Yes  Yes  Yes
     22350006  USB 2.0 A-B / Ethernet 100Base-T  No  Yes  No  No
     22350007  USB 2.0 A-B / Ethernet 100Base-T  No  No  Yes  No
     22350008  USB 2.0 A-B / Ethernet 100Base-T  Yes  No  No  No
     22350009  USB 2.0 A-B / Ethernet 100Base-T  No  No  Yes  Yes
     22350010  USB 2.0 A-B / Ethernet 100Base-T  Yes  No  No  Yes
     22350011  USB 2.0 A-B / Ethernet 100Base-T  No  No  No  Yes

    Download Magtek STX Data Sheet
    Download Magtek STX Installation Guide
    Download Magtek STX Programming Guide




    Updated: 07/20/2017
