Checks  Gift Cards  Credit Cards

Terminal Displays Action Taken
HOME MENU
TSYS
GETI
GETIGift

 Select the [ƒ] button that has "TSYS" beside it.
Sale
Void
Refund
Home           Phone Order
 Press the Up [▲] Arrow button.

Server Setup
General
Hardware
Unlock

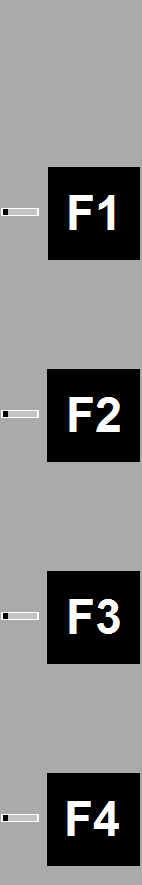

 Press the [F2] button.

About
Param Download
Param Phone
Parameter Rpt
 Press the [F4] button.
 Parameter Rpt

 Printing...
 The terminal is printing out the report. See example below.

Param Down Tel
Parameter Download
Parameter Rpt
About
 Press the Red [Cancel] button.
Sale
Void
Refund
Home           Phone Order
 Printing of the Parameters for Credit Card Application is complete.


HW/SW/PARAMETERS REPORT
    DATE:   TIME:
* * * * *     HARDWARE     * * * * *
  PINPAD TYPE:
  PrimTrex SERIAL:
  AVAILABLE RAM:		 |
|
|
* * * * *     SOFTWARE     * * * * *
  MID VERSION:
  APPL VERSION:
  PINPAD APPL VERSION:		 0.3.16
1.0.27
* * * * *     COMM PARAMETERS     * * * * *
  PHONE PREFIX:
  PHONE SUFFIX:

  PRI AUTH PHONE NUMBER:
18774880358
  SEC AUTH PHONE NUMBER:
18774880467
  PRI SETTL PHONE NUMBER:
18774880757
  SEC SETTL PHONE NUMBER:
18772281257
  AMEX AUTH PHONE NUMBER:
18008740421
  MODEM PARAMS:
  DIAL MODE:
  COMM VIA IP:
  PREDIAL:
  DIAL BAUD RATE:
  DIAL BACKUP:
  PARAM DOWN TEL:
0
1
ON
2
ON
18778613835
  PRIM HOST IP:
SSL2.VITALPS.NET
  PRIM HOST PORT: 5003
  SEC HOST IP:
SSL2.VITALPS.NET
  SEC HOST PORT: 5003
  IP ENABLE:
  DHCP ENABLE:
  IP ADDRESS:
  SUBNET MASK:
  DNS:
  GATEWAY:		 ON
ON
10.227.32.128
255.255.255.0
10.101.101.101
10.101.101.102
* * * * *     HOST PARAMETERS     * * * * *
  SPLIT DIAL SUPPORT:
  AMEX TERMINAL ID:		 OFF
* * * * *     APP PARAMETERS     * * * * *
  DESCRIPTION

  INV PROMPT:
  TIP ON SALE:
  RETAIL TIP:
  MAX TIP %:
  MAX CASH BACK AMOUNT:
  PRINTER ENABLED:
  TOTAL RPT ON SETTLE:
  DETAIL RPT ON SETTLE:
  Commercial Card
  Customer Server
  AUTO-SETTLEMENT:
  AUTO-SETTLEMENT TIME:
  PRINT B.DETAIL RPT:
  CLERK/SERVER MODE:
  WARNING BEEP:
  PINPAD BAUDRATE:
  MAIN SCREEN SWIPE:
  SINGLE APP:
  DIAL/IP NMS ENABLE:
  SSL Time Out:

  Offline Auth:
  Offline Limit:
  Declined Receipt:
  TERMINAL LANGUAGE:

  Header Logo
  Footer Logo		 SETTINGS

OFF
OFF
OFF
40.00
0.00
ON
ON
ON
OFF
1
OFF


OFF
ON
1200
OFF
OFF
1
10

OFF
0
ON
ENGLISH

0
0
* * * * * *     CARDS SUPPORTED     * * * * * *
  Crd Typ Pan   Low Pan   High Status
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
   VI
   MC
   AX
   AX
   DC
   DB
   JCB
   EBT
   DN
   DI
   DI
   PL
   PL
   PL		    40000000
51000000
34000000
37000000
38000000
0
35280000
0
30950000
60000000
94000000
70225110
70225120
70225130		 49999999
55999999
34999999
37999999
38999999
9
35899999
9
30959999
69999999
99999999
70225119
70225129
70225139		 ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON


Updated: 12/30/2016
