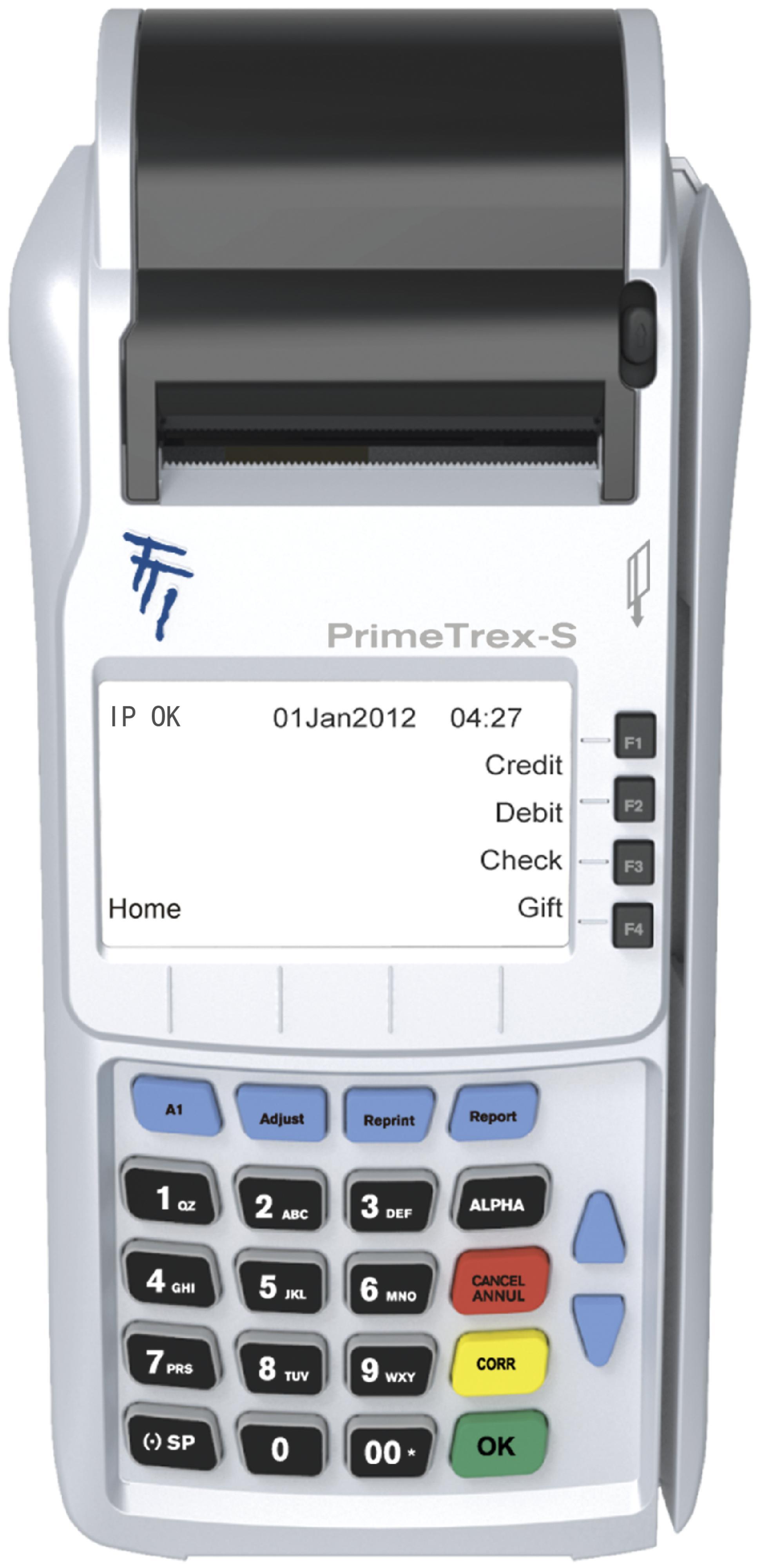

The TechTrex PrimeTrex-S is your ideal desktop POS solution in an evolving industry with strict EMV timelines. Security, speed, reliable processing, and a focus on profit for you and your merchants make this terminal the best choice for a desktop solution today.
	•	Speed With its 32-bit ARM9 processor and 22 line-per-second printer, PrimeTrex-S provides your merchants with optimal transaction speeds. This desktop terminal also features an SD card reader for enhanced deployment with 10 second application downloads.
	•	Security Security is at the highest level with PrimeTrex-S as it incorporates the latest in tamper protection and transaction encryption. The PCI 2.x, EMV Level 1 & 2 and PA-DSS cetification gives PrimeTrex-S the security your merchants need for today and beyond.
	•	Stability PrimeTrex-S is designed to provide a flexible and solid platform for today's complex applicataions, giving your merchants the reliability they need to effectively run their business.
	The TechTrex PrimeTrex-S features:
		Processor: 32-bit ARM9 processor Memory: 64MB Flash and 32MB RAM Real Time Clock (RTC): RTC has power backup for data retention while the external power is turned off Magnetic Sripe Card Reader (MSR): ISO MSR will read Track 1, 2, 3 SD Card Reader Display: Graphical LCD with 128x64 resolution Keypad: Software programmable. Integraded LED backlight Speaker: Integrated single-tone speaker Printer: 22+ lines per second Communication Options:     3 RS-232 ports (Wireless model has 2)     1 RJ-45 Ethernet Port     1 Modem Port Wireless (Optional):     GPRS: Quad-band 850/900/1800/1900 MHz

More information about this terminal can be found at techtrex.com.

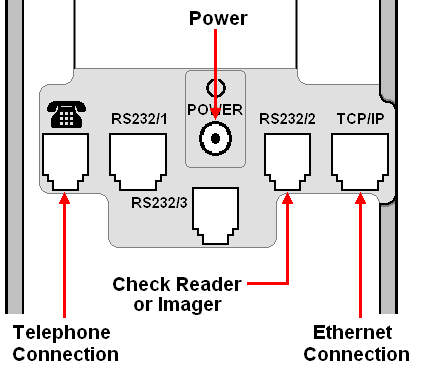

Click on terminal to view connections	Magtek Mini-MICR
PrimeTrex-S

Magtek Imager (Dial-Up)	Magtek Imager (IP)	RDM EC-5003	RDM EC-6014f	RDM EC-7014f

Updated: 09/27/2017
