Reliability and Performance that Leads and Exceeds
Why settle when the best is within reach? Introducing the next generation workhorse in countertop payments, the Vx520. The Vx520 has the reliability you can count on, with enhanced performance and functionality that will protect your investment for years to come.

We didn’t skimp when we designed the Vx520. The industry’s fastest processor – ARM 11 – handles more transactions in less time for greater profits. Plus, explosive memory capability that can exceed 500MB means more revenue from value-added transactions, and preparation for things that lie ahead. Speaking of the future, NFC and contactless capabilities are already integrated in – no separate attachments necessary – it’s built right into the device.


Need portability too?
Well look no further than the Vx520. The Vx520 offers a full range of connectivity options, from dial and Ethernet to GPRS with an optional battery mean no distance constraints. Plus, a uniquely designed communication port area underneath the device keeps countertops neat and free of clutter.

Unprecedented performance combined with mission-critical features – that’s the Vx520. The ultimate in reliable countertop payment.


Currently the Omni Vx520 terminal can process Gift Cards using the SPS-EFT-Gift Application. Processing can be performed via Dial-Up (Modem) or IP (Internet). This brings the performance, Versatility and capabilities up on this terminal to a new standard of operation for the merchant.


Click for Explanation       Click for Explanation       Click for Explanation

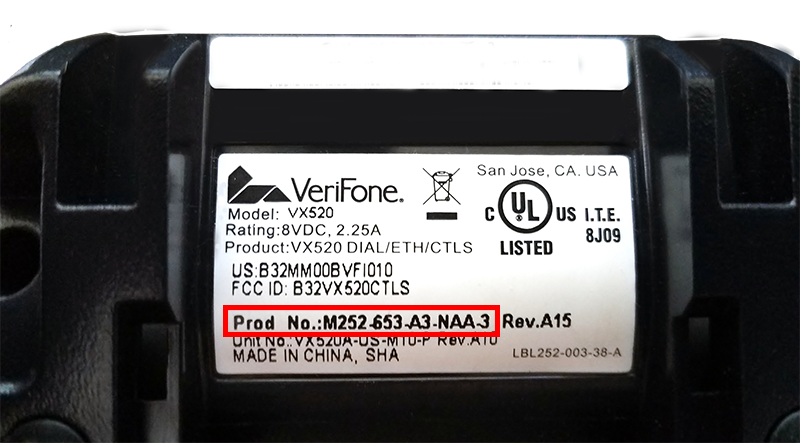

LABEL ON BOTTOM OF UNIT

Vx520 DIAL ONLY

Vx520 DUAL COMM (DC)


More information on this terminal can be found at the VeriFone Website.

Download 3730/Vx510 Data Sheet

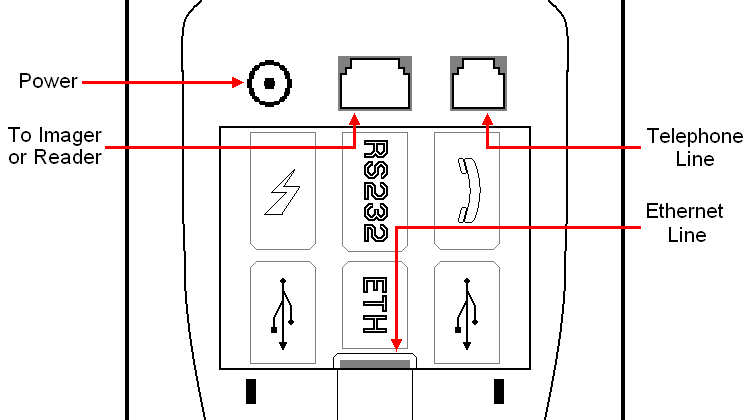

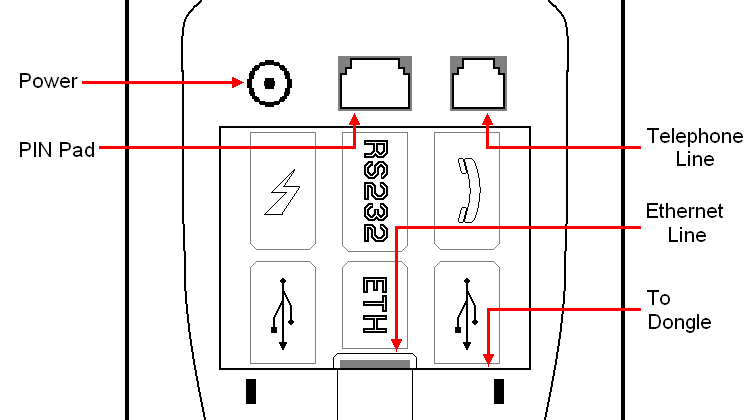

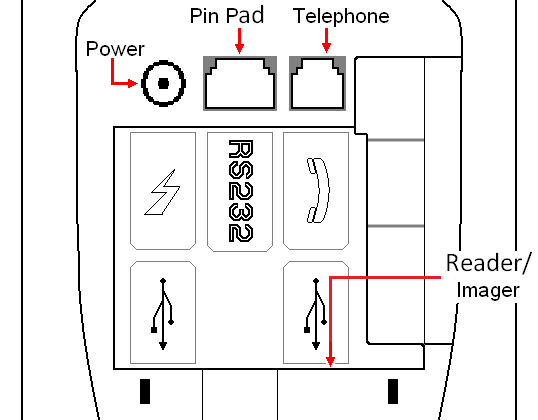

To connect a check reader or imager to the Vx520 terminal,

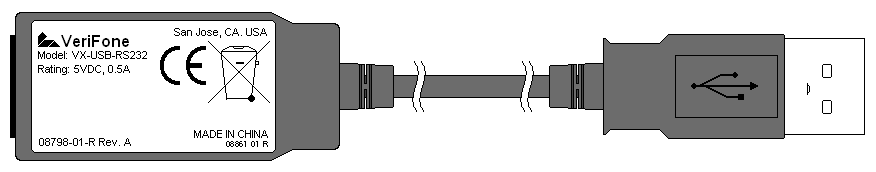

a VeriFone Dongle, part number 08798-01-R, will be required.




Open Matrix for connecting to readers
Click on terminal
to view connections
Magtek
Mini-MICR
VeriFone
CR-600
Vx520 DC w/ PIN Pad
Vx520 DC w/o PIN Pad
Vx520 Dial w/ PIN Pad
Vx520 Dial w/o PIN Pad


Open Matrix for connecting to Imagers
  Magtek
Imager (Dial-Up)
Magtek
Imager (IP)
VeriFone
CR-1000i
RDM
EC-6014f
RDM
EC-7014f
Vx520 DC w/ PIN Pad
Vx520 DC w/o PIN Pad
Vx520 Dial w/ PIN Pad
Vx520 Dial w/o PIN Pad


Updated: 09/27/2018
