Terminal Displays

Action Taken

SELECT APP

1. GETI GIFT

2. GETI CHECK

Select the GETI Gift.


WELCOME

	GETI GIFT

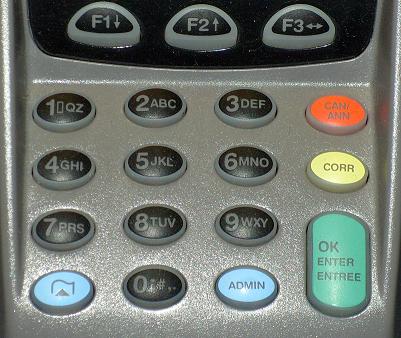

Press the [Admin] button.

ADMIN MENU
1. CLERK MENU
2. BATCH MENU
3. SETUP MENU	▲▼

Press the [3] button.

OR

Press the [F1↓] button to scroll down to Setup Menu and press the Green [OK/Enter/Entree] button.

ADMIN MENU
1. CLERK MENU
2. BATCH MENU
3. SETUP MENU	▲▼

SETUP MENU
1. COMMS.
2. PASSWORDS
3. FUNCTIONS	▲▼

Press the [F3↔] button twice.

then

Press the Green [OK/Enter/Entree] button.

SETUP MENU
7. DIAGNOSTICS
8. INFO
9. LOG TXN	▲▼

DIAGNOSTICS
1. COMMS TEST
2. PRINTER TEST
3. CARD READER	▲▼

Press the [F1↓] button to scroll down to Print IP.

then

Press the Green [OK/Enter/Entree] button.

DIAGNOSTICS
4. LINE VOLTAGE
5. PING
6. PRINT IP	▲▼

DIAGNOSTICS
1. COMMS TEST
2. PRINTER TEST
3. CARD READER	▲▼

Press the Red [Can/Ann] button three times.

SETUP MENU
1. COMMS.
2. PASSWORDS
3. FUNCTIONS	▲▼

ADMIN MENU
1. CLERK MENU
2. BATCH MENU
3. SETUP MENU	▲▼


WELCOME

	GETI GIFT

Change(s) complete.

IP Parameters

— — — — — — — — — — — —

COMMS Mode: Ethernet
Automatic DNS: ON
Gateway IP: 192.168.1.100
Gateway Timeout: 240 seconds
IP Connect Timeout: 20 seconds
IP Type: Dynamic
Primary DNS IP Address: 000.000.000.000
Secondary DNS IP Address: 000.000.000.000
Primary Host Name: merchqa.optinc.com
Secondary Host Name: merchqa.optinc.com
Primary Host Port: 443
Secondary Host Port: 443
Subnet Mask: 255.255.255.0
TCP Retry Timer: 15 seconds
Terminal IP Address: 192.168.109.221

END OF REPORT

CONFIGURED
D H C P	S T A T I C

IP Parameters

— — — — — — — — — — — —

COMMS Mode: Ethernet
Automatic DNS: OFF
Gateway IP: 101.227.37.1
Gateway Timeout: 240 seconds
IP Connect Timeout: 20 seconds
IP Type: Static
Primary DNS IP Address: 101.227.32.86
Secondary DNS IP Address: 101.227.32.87
Primary Host Name: merchqa.optinc.com
Secondary Host Name: merchqa.optinc.com
Primary Host Port: 443
Secondary Host Port: 443
Subnet Mask: 255.255.255.0
TCP Retry Timer: 15 seconds
Terminal IP Address: 101.227.37.152

END OF REPORT
