The EC7000i® Series provides a low cost, two-sided imaging solution for merchants and low volume billers who want to take advantage of the opportunities presented by Check 21.

Based on RDM's EC6000i® Series with its small footprint, connectivity to most popular POS terminals, and industry leading MICR and image technology, the EC7000i features a standard USB port, in addition to a wide variety of optional features such as a Franking Acknowledgment printer, internal alphanumeric OCR A and B character recognition, OCR E13B MICR Assist, and 3-track bi-directional Magnetic Stripe Reader (MSR), positioning it as one of the most versatile and reliable two-sided imaging scanner in the marketplace.

Product Features:
  • Captures a high-quality two-sided binary image of the check in seconds.
  • Reads E13B & CMC7 MICR character sets.
  • Optional Franking Acknowledgement Printer.
  • Utilizes RDM’s patented Progressive MICR Method delivering the highest MICR read rate in the industry.
  • Optional bi-directional Magnetic Stripe Reader (MSR).
  • Standard USB connectivity provides flexible connection to PC-based applications.
  • Standard 2-year manufacturer warranty.
    		•


    Model Part Number Description

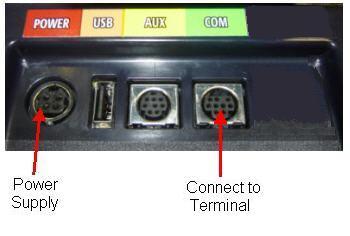

    EC-7011 6000-7702-xxx  High memory imager with no internal modem and no franking. This model has no ability to dial in to transmit the stored images. Capable of storing approximately 300 images.
    EC-7011f 6000-7702-FRK  High memory imager with no internal modem, but has franking. This model has no ability to dial in to transmit the stored images. Capable of storing approximately 300 images.

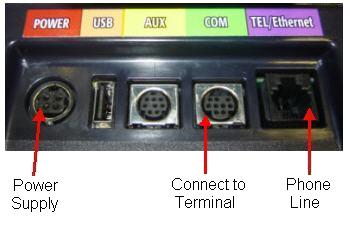

    EC-7014 6000-7012-xxx  High memory imager with an internal modem and no franking. This model can dial in to transmit the stored images. Capable of storing approximately 300 images.
    EC-7014f 6000-7712-FRK  High memory imager with an internal modem, but has franking. This model can dial in to transmit the stored images. Capable of storing approximately 300 images.

    More information on this unit can be found at www.rdmcorp.com.

    Download RDM EC-7000i Data Sheet
    Download RDM EC-6000i/7000i Installation Guide
    Removal of FAP Cartridge Assembly



    RDM EC-7000 Franking Feature
    Franking is supported on the following terminal types:

  • Hypercom ICE and T7 Series terminals using SPOS9.
  • Hypercom T4100 and T4200 Series terminals.
  • Nurit terminals.
  • Personal Computers (PCs).
  • Thales Talento terminals.
  • VeriFone Omni terminals.
    		•

    The RDM Franking Acknowledgment roller (RDM P/N 6000-6050) can be purchased through most of our distributors and resellers. You may want to try the reseller you purchased your scanner from first, as you already have a business relationship with them. Alternatively, you may call one of the national distributors listed below.
    BenchMark Technologies 1-800-554-4582
    BLM Technologies 1-800-358-5574
    ELAVON 1-800-725-1243
    Global Payment Systems 1-800-364-5856
    GoldLeaf Technologies 1-877-999-2262
    JR's POS Depot 1-877-999-7374
    TASQ Technologies 1-800-827-8297
    Technique Data Systems, Inc. 1-800-856-8552
    The Phoenix Group 1-866-559-7627
    Unilink 1-800-666-2980


    Updated: 08/07/2017
