P/N: 6000-6065

Inserting the Franking (FAP) Printer Assembly    Removing the Franking (FAP) Printer Assembly


The franker cartridge creates a red ink stamp that defaces the front of each check with a message that says “Electronically Presented”. Franker can be purchased by contacting your solution provider or reseller.



I.   To access the Franker Area:

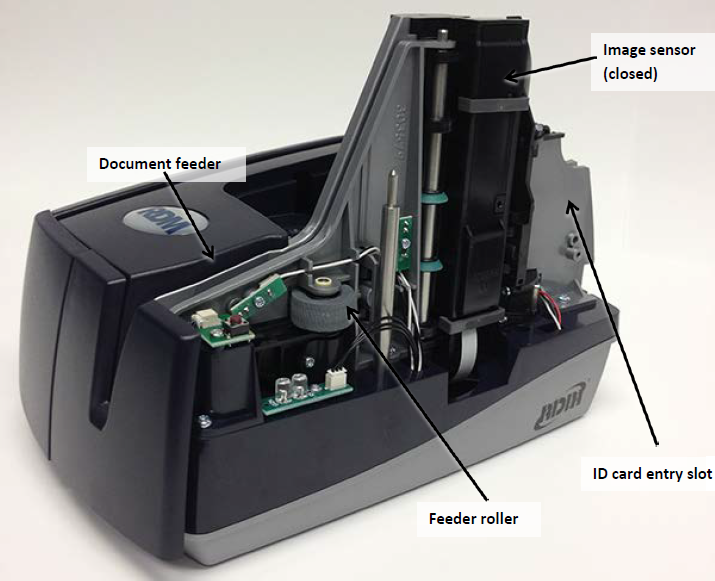

Remove the front cover when you need to clear paper jams, replace the franker cartridge, or clean the image sensor.
1.  Disconnect the power cord from the scanner.
2.  Pull the insertion extensions forward.

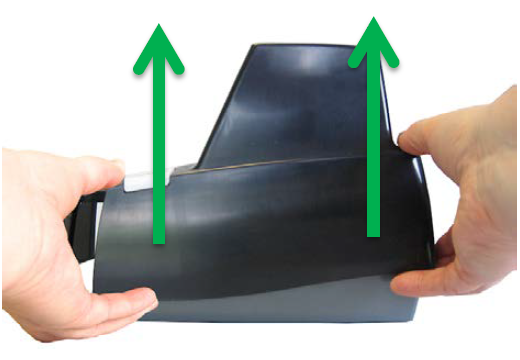

3.  Grasp the front and the back end of the front cover.
4.  Gently pull the cover upwards until it detaches from the scanner.

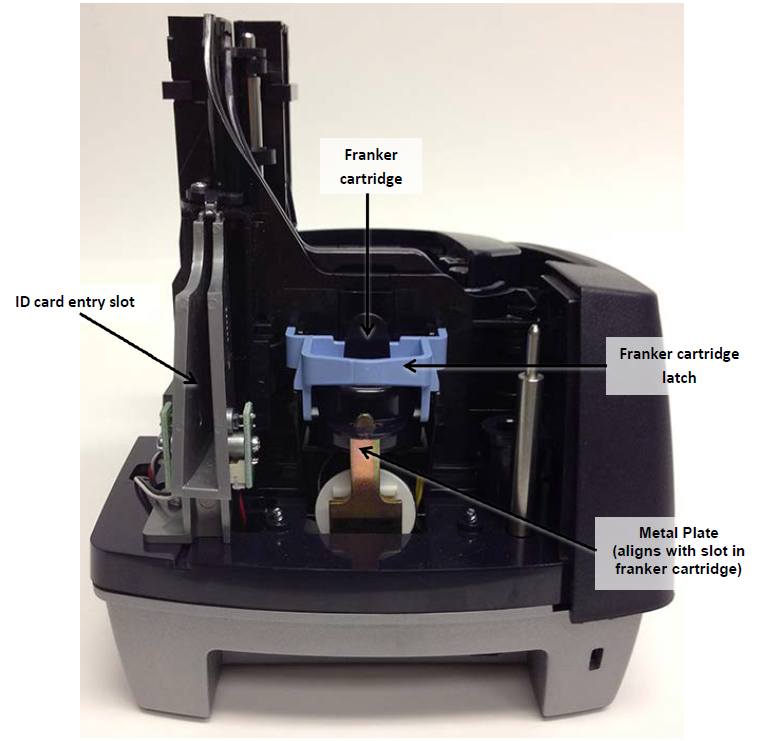

5.  Rotate the unit around to expose the back, that is where the Franking cartridge will be located.
II.   Installing the Franker Cartridge:
1.  Remove the front cover, the franker cartridge is held in place by a Blue franker latch and a metal plate.
2.  Lift the Blue franker latch.

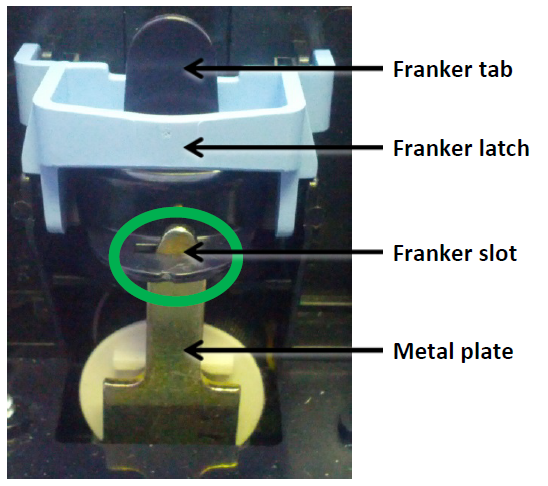

3.  Insert the new franker cartridge. Make sure the top of the metal plate fits into the slot in franker cartridge (as pictured).
4.  Secure the franker cartridge:
a.  Push the metal plate towards the body of the scanner (pushing in the franker cartridge).
b.  Lowering the blue latch over the franker cartridge until it snaps closed.
5.  Replace the scanner cover.


Updated: 08/09/2017
