| Terminal Displays
| Action Taken
|
COMMSERVER
GIFT/LOYALTY
|
 |
|

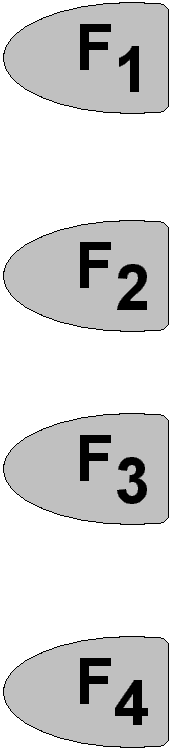

Simultaneously press the [F2] & [F4] buttons. |
SYS MODE ENTRY
PASSWORD
____________________
|
|
|
Key in 1, Alpha, Alpha, 66831. |
SYS MODE ENTRY
PASSWORD
* * * * * _____________
|
|
|
Press the Green [Enter] button. |
SYS MODE MENU 1
CONTRAST
CLOCK
RESTART
▼
|
|
|
Press the Purple button beneath the Down Arrow at the bottom of the display
once. |
SYS MODE MENU 2
DOWNLOAD
RAM FILES
FLASH
FILES
▲ ▼
|
|
|
Press the [F2] button. |
SYS MODE FILE
FILE GROUP
_1
▲ ▼ |
|
|
Key in 6. |
SYS MODE FILE
FILE GROUP
_6
▲ ▼ |
|
|
Press the Green [Enter] button. |
GROUP 6 PASSWORD
__________________
|
|
|
Key in 1, Alpha, Alpha, 66831. |
GROUP 6 PASSWORD
* * * * *
* __________
|
|
|
Press the Green [Enter] button. |
SYS MODE DOWNLOAD
G 6
FULL
PARTIAL
▲ ▼
|
|
|
Press the [F3] button. |
SYS MODE DOWNLOAD
G 6
MODEM
COM1
TCPIP
▼
|
|
|
Press the [F2] button. |
SYS MODE DOWNLOAD
*ZP
HOST PHONE NUMBER
__________________
|
|
|
Key in 209.10.121.115:8013 and press the Green [Enter] button. |
For a Period (.), press the [1] button and the
[alpha] button three times.
For a Colon (:), press the the Pound [#] button and the [Alpha] button twice. |
SYS MODE DOWNLOAD
*ZT
ENTER TERMINAL ID
__________________
|
|
|
Key in the 6-digit or 7-digit TID and press the Green [Enter] button. |
SYS MODE DOWNLOAD
*ZA
ENTER APPLICATION ID
__________________
|
|
|
Key in UCRMI340G and press the Green [Enter] button. |

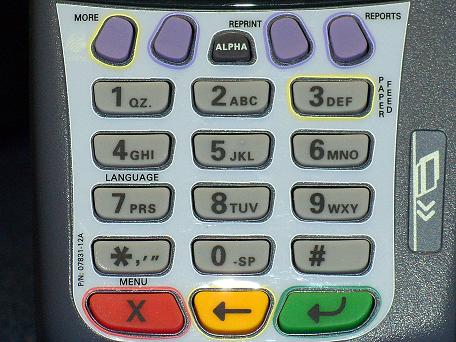

To key in a letter, press the numbered button
with the desired letter on it and then press the [Alpha] button until you get the desired letter.
NOTE: The letters Q & Z are located on the number 1
button. |
|
SYS MODE DOWNLOAD
G 6
DOWNLOADING NOW . . .
|
|
|
The terminal will now connect to the host to download the application. |
SYS MODE DOWNLOAD
G 6
DOWNLOAD DONE
DOWNLOADING NOW . . .
|
|
|
Press the Green [Enter] button. |
COMMSERVER
GIFT/LOYALTY
CHECKS
|
|
|
Application installation complete. |
